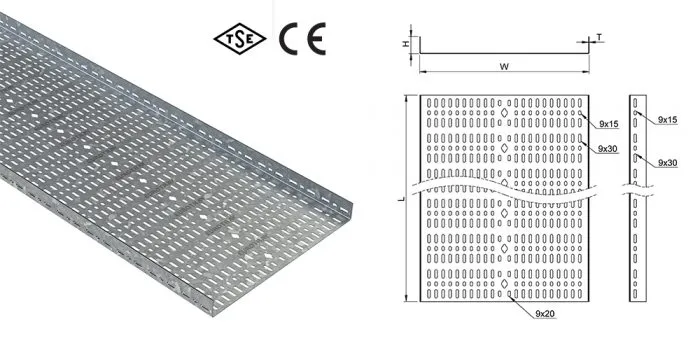

EN SERIES Cable Trays
| Type | : Standard Type |
| Property | : Lean design accepted in various industries |
| Code | : EN |
| Advantages | : Wide range of use |
| Thickness | : 0,80 – 2,00 mm |
| Width | : 50-600 mm |
Coating Types
Technical Tables
H40
| # | Product Code | T (mm) | W (mm) | H (mm) | Unit Weight(kg/m) |
| 1 | EN-05040-080 | 0.8 | 50 | 40 | 0.766 |
| 2 | EN-05040-100 | 1.0 | 50 | 40 | 0.924 |
| 3 | EN-05040-120 | 1.2 | 50 | 40 | 1.086 |
| 4 | EN-05040-150 | 1.5 | 50 | 40 | 1.332 |
| 5 | EN-05040-200 | 2.0 | 50 | 40 | 1.714 |
| 6 | EN-10040-080 | 0.8 | 100 | 40 | 1.051 |
| 7 | EN-10040-100 | 1.0 | 100 | 40 | 1.272 |
| 8 | EN-10040-120 | 1.2 | 100 | 40 | 1.498 |
| 9 | EN-10040-150 | 1.5 | 100 | 40 | 1.834 |
| 10 | EN-10040-200 | 2.0 | 100 | 40 | 2.378 |
| 11 | EN-15040-080 | 0.8 | 150 | 40 | 1.333 |
| 12 | EN-15040-100 | 1.0 | 150 | 40 | 1.614 |
| 13 | EN-15040-120 | 1.2 | 150 | 40 | 1.906 |
| 14 | EN-15040-150 | 1.5 | 150 | 40 | 2.337 |
| 15 | EN-15040-200 | 2.0 | 150 | 40 | 3.034 |
| 16 | EN-20040-080 | 0.8 | 200 | 40 | 1.626 |
| 17 | EN-20040-100 | 1.0 | 200 | 40 | 1.972 |
| 18 | EN-20040-120 | 1.2 | 200 | 40 | 2.33 |
| 19 | EN-20040-150 | 1.5 | 200 | 40 | 2.856 |
| 20 | EN-20040-200 | 2.0 | 200 | 40 | 3.715 |
| 21 | EN-25040-100 | 1.0 | 250 | 40 | 2.181 |
| 22 | EN-25040-120 | 1.2 | 250 | 40 | 2.579 |
| 23 | EN-25040-150 | 1.5 | 250 | 40 | 3.161 |
| 24 | EN-25040-200 | 2.0 | 250 | 40 | 4.116 |
| 25 | EN-30040-100 | 1.0 | 300 | 40 | 2.739 |
| 26 | EN-30040-120 | 1.2 | 300 | 40 | 3.241 |
| 27 | EN-30040-150 | 1.5 | 300 | 40 | 4.005 |
| 28 | EN-30040-200 | 2.0 | 300 | 40 | 5.181 |
| 29 | EN-40040-120 | 1.2 | 400 | 40 | 4.176 |
| 30 | EN-40040-150 | 1.5 | 400 | 40 | 5.121 |
| 31 | EN-40040-200 | 2.0 | 400 | 40 | 6.688 |
| 32 | EN-50040-120 | 1.2 | 500 | 40 | 4.982 |
| 33 | EN-50040-150 | 1.5 | 500 | 40 | 6.107 |
| 34 | EN-50040-200 | 2.0 | 500 | 40 | 7.984 |
| 35 | EN-60040-120 | 1.2 | 600 | 40 | 5.919 |
| 36 | EN-60040-150 | 1.5 | 600 | 40 | 7.256 |
| 37 | EN-60040-200 | 2.0 | 600 | 40 | 9.492 |
H50
H60
H75
H100
*Hot Dip Galvanized (TS EN ISO 1461)
- Product weights are approximate values, may vary by ± 10%.
- Product weights on the table reflect the weights of products coated with hot dip galvanizing method.
- Standard lengths are 2500 mm and 3000 mm.
- Please contact to your customer representative for detailed information and for your demands with special dimensions.
Load Diagram
EN-H40

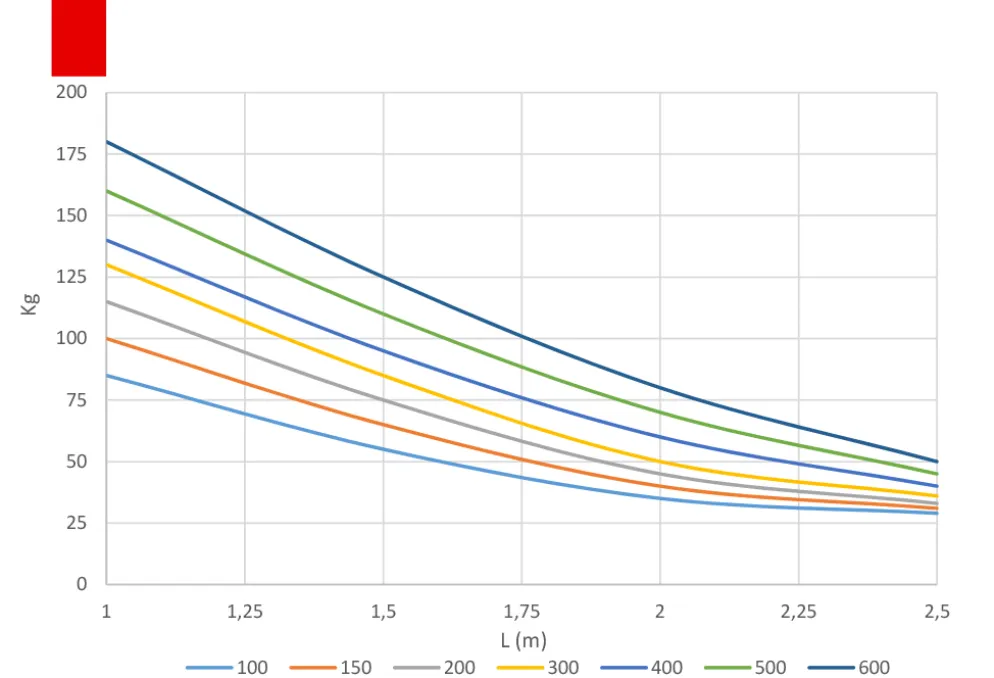

EN-H50

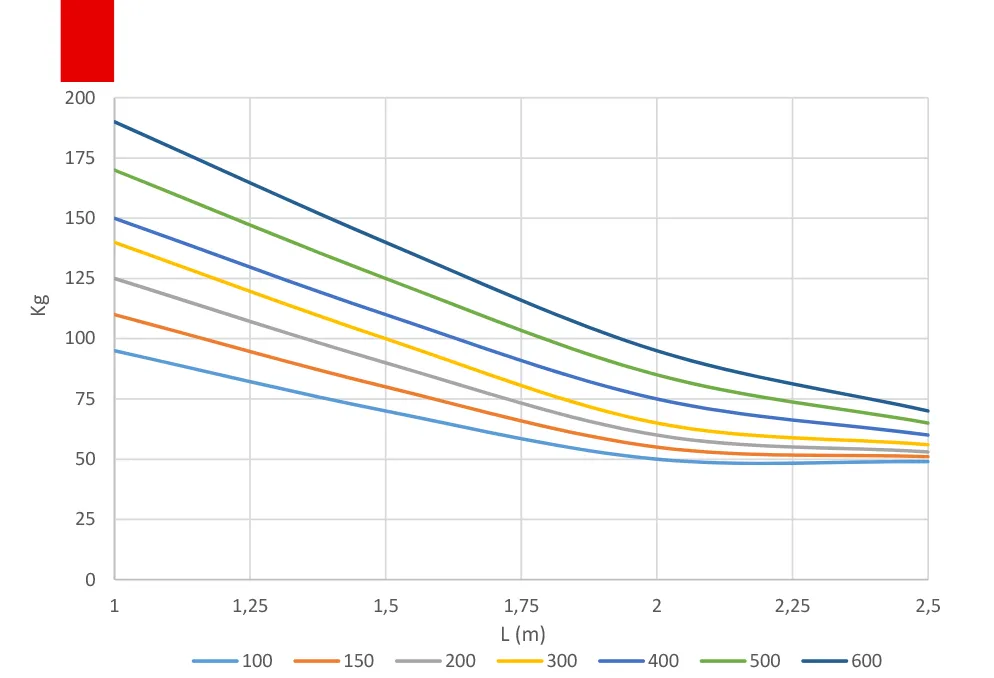

EN-H60

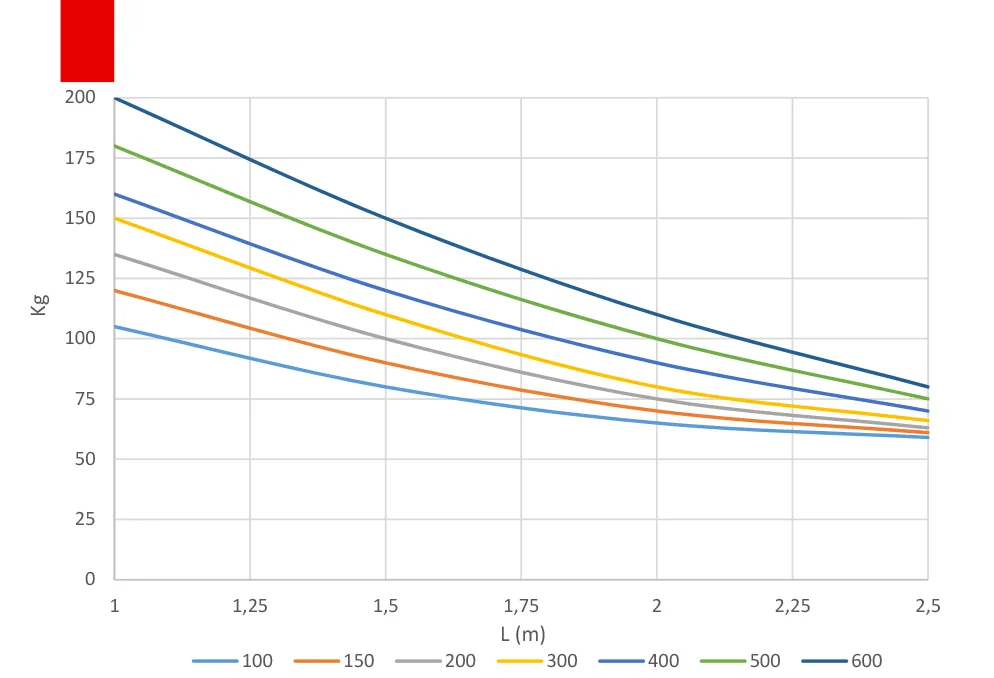

EN-H75
EN-H100
