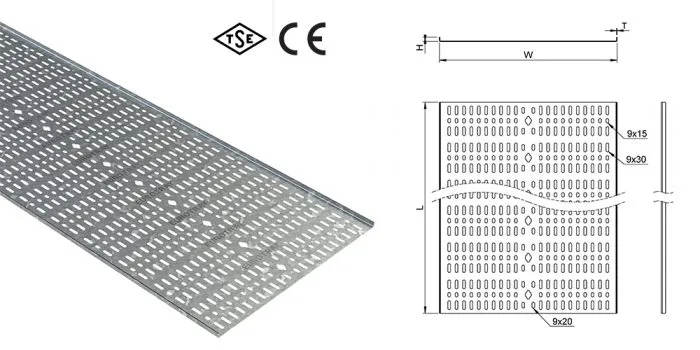

EM SERIES Cable Trays
| Type | : Marine Type |
| Property | : Designed for the shipping industry |
| Code | : EM |
| Advantages | : Solutions suitable for the sector |
| Thickness | : 0,80 – 2,00 mm |
| Width | : 100-600 mm |
Coating Types
Technical Tables
H15
| # | Product Code | T (mm) | W (mm) | H (mm) | Unit Weight(kg/m) |
| 1 | EM-05015-100 | 1.0 | 50 | 15 | 0.612 |
| 2 | EM-10015-100 | 1.0 | 100 | 15 | 0.980 |
| 3 | EM-15015-100 | 1.0 | 150 | 15 | 1.217 |
| 4 | EM-20015-150 | 1.5 | 200 | 15 | 2.464 |
| 5 | EM-25015-150 | 1.5 | 250 | 15 | 3.066 |
| 6 | EM-30015-150 | 1.5 | 300 | 15 | 3.658 |
H30
*Hot Dip Galvanized (TS EN ISO 1461)
- Product weights are approximate values, may vary by ± 10%.
- Product weights on the table reflect the weights of products coated with hot dip galvanizing method.
- Standard lengths are 2500 mm and 3000 mm.
- Please contact to your customer representative for detailed information and for your demands with special dimensions.
Load Diagram
EM-H15

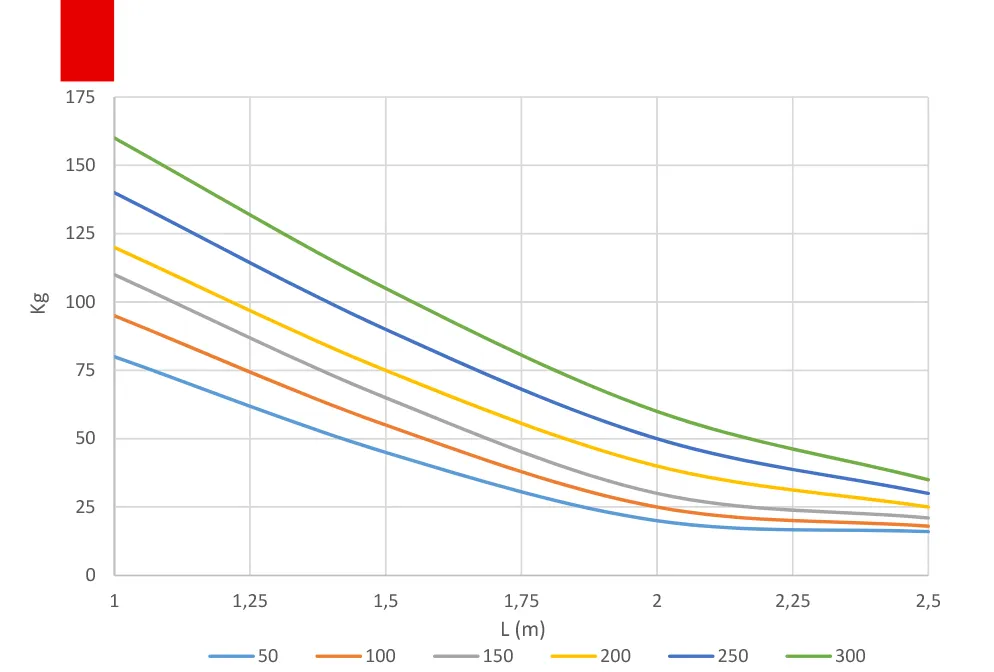

EM-H30
