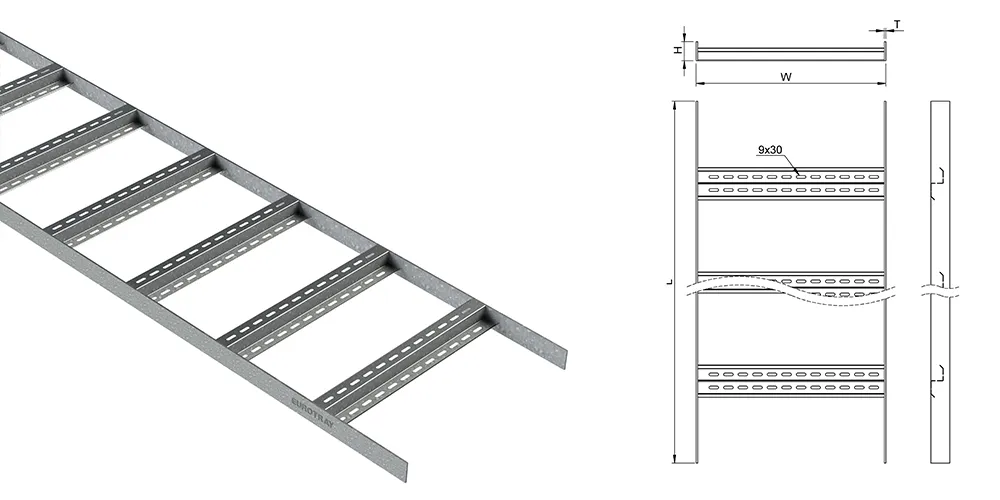

EML SERIES Cable Ladders
| Type | : Marine Type |
| Property | : Designed for the shipping industry |
| Code | : EML |
| Advantages | : Solutions suitable for the sector |
| Thickness | : 5,00 mm |
| Width | : 100 – 600 mm |
Coating Types
Technical Tables
H40
| # | Product Code | T (mm) | W (mm) | H (mm) | Unit Weight(kg/m) |
| 1 | EML-10040-500 | 4.0 | 100 | 40 | 3.737 |
| 2 | EML-20040-500 | 4.0 | 20 | 40 | 4.219 |
| 3 | EML-30040-500 | 4.0 | 300 | 40 | 4.693 |
| 4 | EML-40040-500 | 4.0 | 400 | 40 | 5.174 |
| 5 | EML-50040-500 | 4.0 | 500 | 40 | 5.656 |
| 6 | EML-60040-500 | 4.0 | 600 | 40 | 6.944 |
H50
*Hot Dip Galvanized (TS EN ISO 1461)
- Product weights are approximate values, may vary by ± 10%.
- Product weights on the table reflect the weights of products coated with hot dip galvanizing method.
- Standard lengths are 2500 mm and 3000 mm.
- Please contact to your customer representative for detailed information and for your demands with special dimensions.

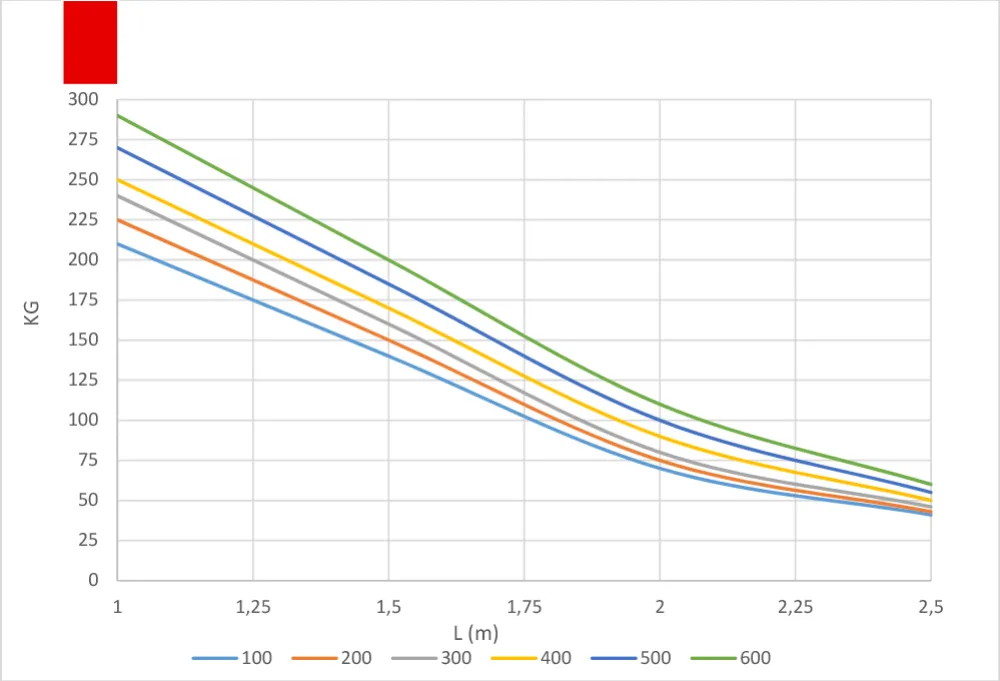

Load Diagram
H40
H50
