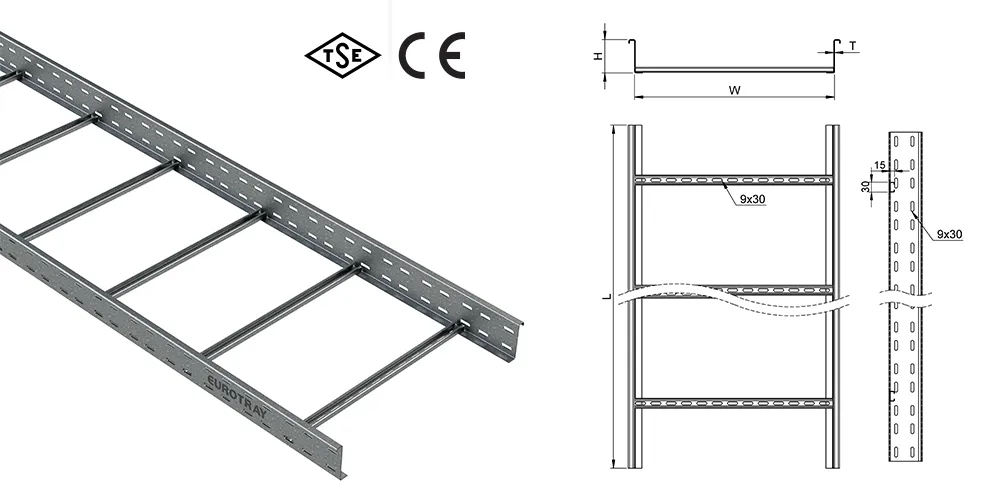

ELH SERIES Cable Ladders
| Type | : Heavy Duty Type |
| Property | : Twisted edges providing strength |
| Code | : ELH |
| Advantages | : High Carrying Capacity |
| Thickness | : 1,20 – 2,00 mm |
| Width | : 100-900 mm |
Coating Types
Technical Tables
H75
| # | Product Code | T (mm) | W (mm) | H (mm) | Unit Weight(kg/m) |
| 1 | ELH-10075-150 | 1.5 | 100 | 75 | 3.568 |
| 2 | ELH-10075-200 | 2.0 | 100 | 75 | 4.528 |
| 3 | ELH-15075-150 | 1.5 | 150 | 75 | 3.830 |
| 4 | ELH-15075-200 | 2.0 | 150 | 75 | 4.791 |
| 5 | ELH-20075-150 | 1.5 | 200 | 75 | 4.092 |
| 6 | ELH-20075-200 | 2.0 | 200 | 75 | 5.057 |
| 7 | ELH-25075-150 | 1.5 | 250 | 75 | 4.354 |
| 8 | ELH-25075-200 | 2.0 | 250 | 75 | 5.320 |
| 9 | ELH-30075-150 | 1.5 | 300 | 75 | 4.616 |
| 10 | ELH-30075-200 | 2.0 | 300 | 75 | 5.583 |
| 11 | ELH-40075-150 | 1.5 | 400 | 75 | 5.139 |
| 12 | ELH-40075-200 | 2.0 | 400 | 75 | 6.109 |
| 13 | ELH-45075-150 | 1.5 | 450 | 75 | 5.405 |
| 14 | ELH-45075-200 | 2.0 | 450 | 75 | 6.375 |
| 15 | ELH-50075-150 | 1.5 | 500 | 75 | 5.663 |
| 16 | ELH-50075-200 | 2.0 | 500 | 75 | 6.635 |
| 17 | ELH-60075-150 | 1.5 | 600 | 75 | 6.190 |
| 18 | ELH-60075-200 | 2.0 | 600 | 75 | 7.161 |
| 19 | ELH-75075-150 | 1.5 | 750 | 75 | 6.979 |
| 20 | ELH-75075-200 | 2.0 | 750 | 75 | 7.952 |
| 21 | ELH-90075-150 | 1.5 | 900 | 75 | 7.767 |
| 22 | ELH-90075-200 | 2.0 | 900 | 75 | 8.744 |
H100
H150
*Hot Dip Galvanized (TS EN ISO 1461)
- Product weights are approximate values, may vary by ± 10%.
- Product weights on the table reflect the weights of products coated with hot dip galvanizing method.
- Standard lengths are 2500 mm and 3000 mm.
- Please contact to your customer representative for detailed information and for your demands with special dimensions.

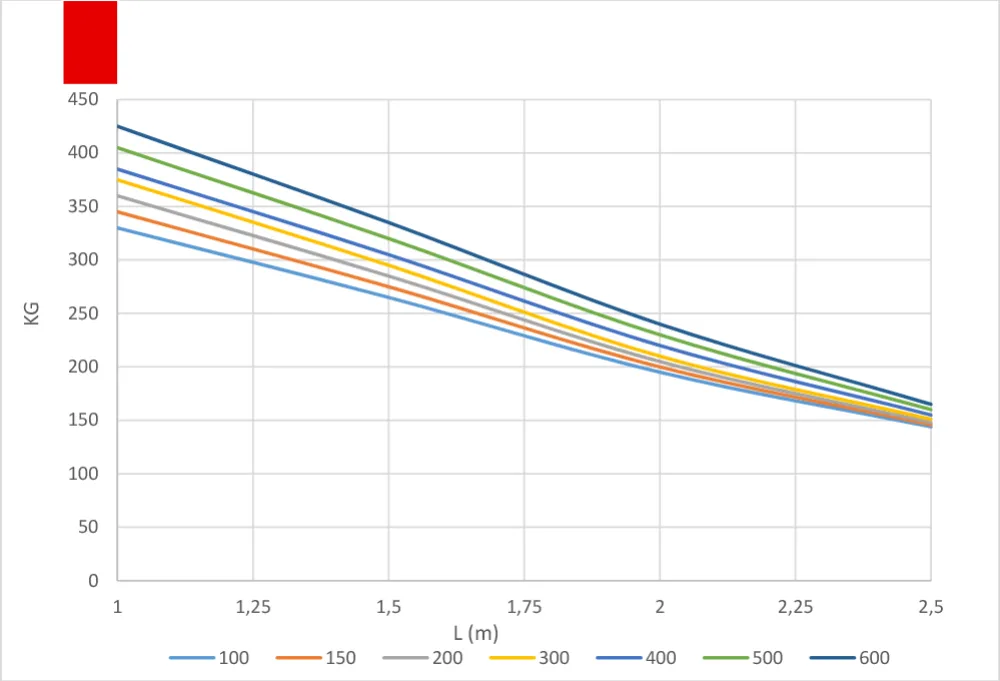

Load Diagram
H75
H100
H150
